DELTAREG AA 132

Strapping machines

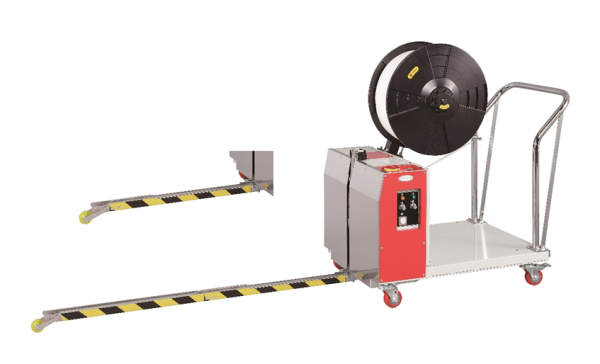

SEMIAUTOMATIC STRAPPING MACHINE WITH LATERAL HEAD AND BAYONET

The semi-automatic strapping machines are particularly suitable for solving the problems of packing small pallets.

Equipped with bayonet, hinged and liftable at 90 ° it allows to optimize the spaces when it is not used, 4 pivoting wheels for a fast positioning of the strapping machine, facilitating the passage of the strap through the pallet to be strapped, proposing on the other side the head of the strap.

At this point it is sufficient to insert this in the appropriate opening to activate the strapping cycle. The welding of the strap is carried out by melting it due to a hot blade whose adjustable temperature is kept constant by a thermoregulator.

Electronically adjustable tensioning, pre-launch and throwing of the adjustable strap by potentiometer, button for further strap relaunch.

download attachments

VERSION WITH BATTERY POWER SUPPLY

  • Semiautomatic strapping machine for strapping in P.P. with width from 9 to 15 mm.
  • Built-in 200 A battery, complete with battery charger and power supply
  • Display with charge status indicator
  • Capacity up to 400/500 cycle with charged battery
  • N ° 4 swivel wheels,
  • Bayonet liftable in rest conditions
  • Bayonet of reduced length for W800 pallets with additional tip (option)
  • Pallet strap with minimum height up to 380 mm
  • Control of the tensioning force electronically
  • Tension 8 Kg. Max. 70 Kg.
  • Programmable welding cooling time
  • Usable strap width: (9,12,15 mm.)
  • Internal reel diameter 200 or 280 mm
  • Electric power supply 230 V 50 Hz
  • Net weight 153 kg

SPECIFICATIONS – DELTAREG AA 132

  • Semiautomatic strapping machine for strapping in P.P. with width from 9 to 15 mm.
  • N ° 4 swivel wheels
  • Bayonet liftable in rest conditions
  • Bayonet of reduced length for W800 pallets with additional tip (option)
  • Pallet strap with minimum height up to 380 mm.
  • Control of the tensioning force electronically
  • Machine ready light
  • Number of launched strap programmable via potentiometer
  • Tension 8 Kg. Max. 70 Kg
  • Adjustable welding cooling time
  • Usable strap width: (9,12,15 mm.)
  • Internal reel diameter 200 or 280 mm
  • Electric power supply 230 V 50 Hz
  • Net weight 81 kg.

Machine made according to CE rules.

Notes: Technical data subject to variations without prior notice
Output depends on the operator and the type of the package
