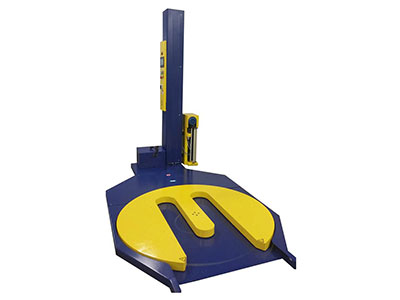

ECOSPIR TS EV

Semi-automatic stretch pallet wrappers with turntable

Open turn-table pallet-wrapper: loading the pallet is really easy!

The Ecospir line offers also a pallet-wrapper with open turn-table in order to enable loading with manual or electric jacks, so there is no need either for floor modifications or for a ramp.

download attachments

  • Main control box with “touch screen” type operator panel with a very easy, simple and intuitive use (figures/pictograms), for a rapidsetting and regulationof the different parameters
  • Pre-setting of 8 different working cycles, each of them with all the parameters customized by the operator
  • Machine working controlled througha compact PLC
  • Possibility to select an automatic or a manually controlled working procedure
  • Possibility to set a number of wrapping cycles in a continuous sequence
  • Possibility to select among 3 different methods of wrapping: standard with cross wrapping (during the film carriage ascent and descent); one way wrapping (during the film carriage ascent only); standard cross wrapping with film carriage stop at the top of the load to permit the manual application of a top cover (the film carriage re-start is activated by the operator pressing the related button on the control box)
  • Basement with rear predisposal for being lifted and moved with a fork-lift
  • Separate setting for the botton and top reinforcing wraps
  • Hinge facility (column/basement) for an easy and fast assembling of the unit
  • Film carriage driving motor integrated in the mast (column)
  • Film carriage transmission by chain
  • Regulation of the film carriage speed, controlled through inverter and with separate parameters for the ascent and descent
  • Safety system on the bottom side of the film carriage frame to stop its descent in case of presence of any obstacle
  • Automatic detection of the wrapping height through photocell
  • Turntable motor protected with a carter
  • Regulation of the turntable rotating speed controlled through inverter, with soft start and progressive arrival in the same starting position
  • Safety system with photocell, mounted o the open side of the turntable to stop the rotation in presence of a fork-lift of any other obstacle
  • Turntable rotation with hard rubber covered wheels powered with a chain transmission

Machine made according to CE rules.



ACCESSORIES AND OPTIONS AVAILABLE ON REQUEST

  • Photocell for loads having a dark or a reflecting colour, or with any other special condition
  • Film carriage with a 200% fixed ratio (1 mt = 3 mt) power prestretch with easy and safe loading of the film, with direct transmission through gears and separate regulation of the film tension from the control panel
  • Extended mast for a wrapping height of 2700
  • Increased loading capacity to 1500 kg maxim

SPECIFICATIONS – ECOSPIR TS EV

  • Maximal wrapping height: 2200 mm
  • Turntable diameter: 1500 mm
  • Turntable profile (height): 75 mm
  • Maximum weight of the load: 1200 Kg
  • Film roll dimensions: 500 dimensions wide, with an external diameter of maxim 250 mm on a 3″ core
  • Machine gross weight: indicatively 430 kg (referred to the machine in its basic configuration)
  • Power supply: 1,5 KW @ 240 V – monofase + T + N

Notes: Technical data subject to variations without prior notice
Output depends on the type of pallet to be wrapeed
